We have measured and drawn these diagrams to help all builders know the size of the 6R80 transmission. We get asked a lot if it will fit in project cars/trucks all the time. Now with these measurements you can see what needs to move or not to get the job done. One diagram is a side view outlining the height in relation to the center line of the transmission which is the input/main shaft. The drawing will represent both Mustang and F150 4 X 2 Transmission cases.

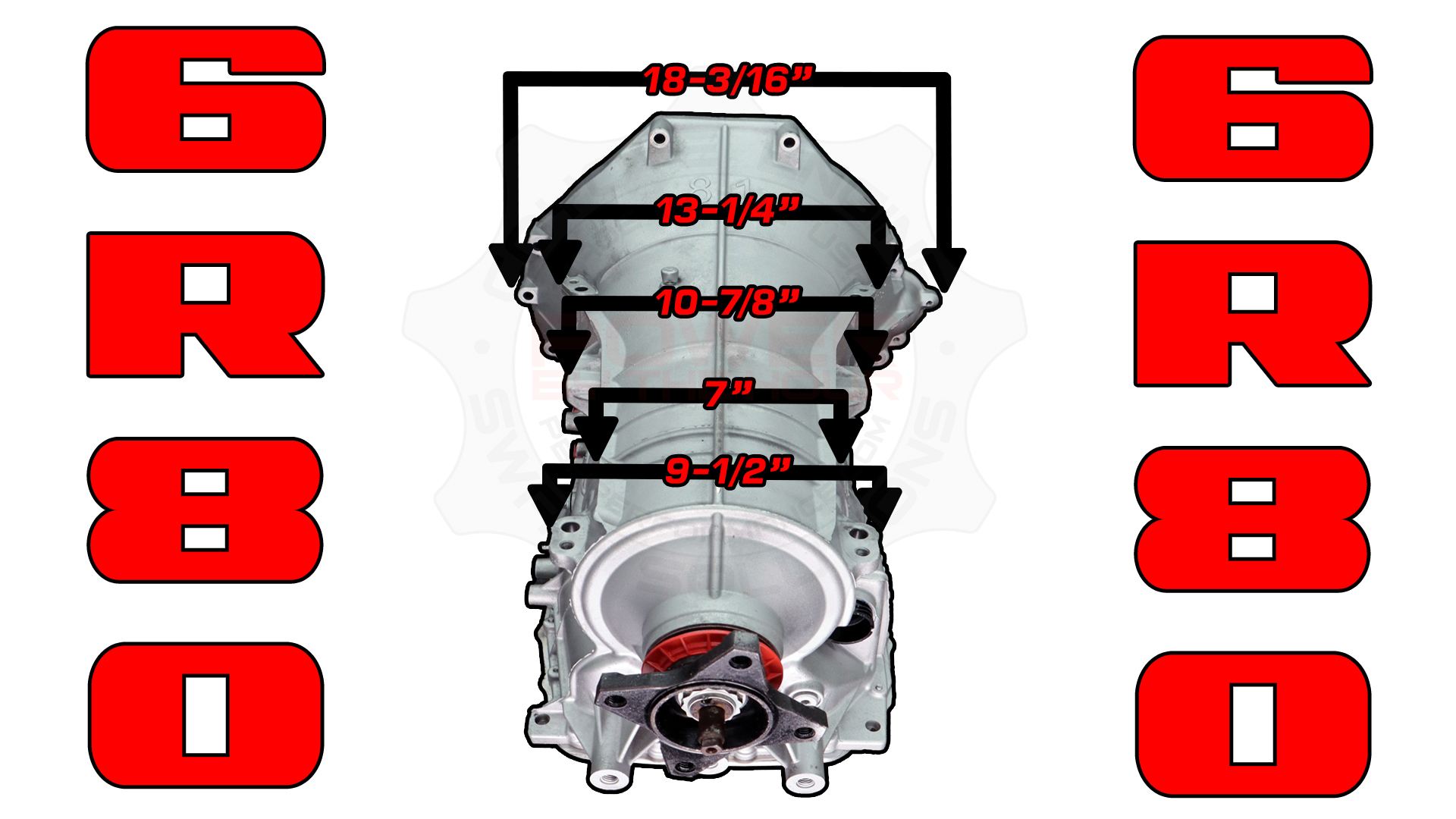

There are several features on the transmission that we use to then develop markers so you can relate the measurement to your own transmission. The top view does the same outlining the width of the transmission. Feel free to share this with others and remember to tag us #pbhequipped. We carry a full catalog of upgraded internal components for the 6r80 transmission and components to help you swap it into your Coyote Swap build. See them all here.
